Monel 400 Twill Dutch Weave Wire Mesh
Table of Contents
Monel 400 Twill Dutch Weave Wire Mesh Supplier
Monel 400 is a combination of nickel and copper making it one of the most multipurpose and widely used nickel alloys. Monel comprises more than 60% and is a versatile alloy, as a copper-nickel alloy exhibits high strength and excellent corrosion resistance in a wide range of media, including sea water and in acidic and alkaline environments. Compared to the common stainless steel wire mesh, monel has a high melting point of 1300 F to 1350 F and strength superior to unalloyed nickel. Due to this exceptional quality, monel is being used inside high-temperature vessels and petroleum applications. Monel 400 is commonly used in shipyards and companies that specialize in marine technologies. Monel 400 is drawn to specific diameter wires and woven to certain specifications.

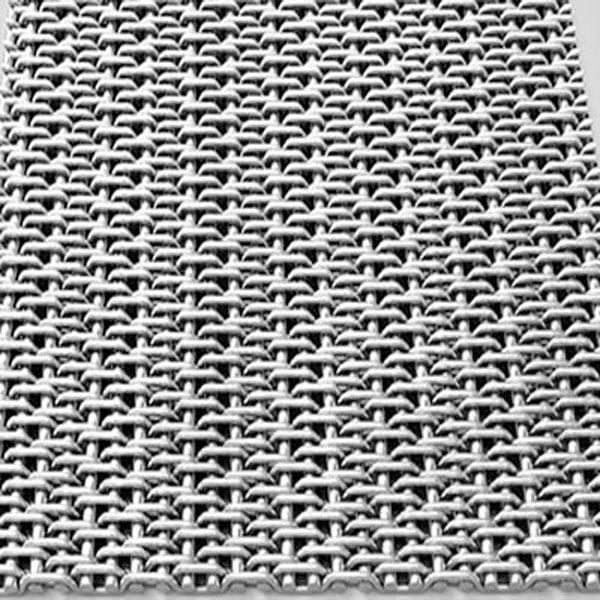

Monel 400 Twill Dutch weave wire mesh is the combination of dutch weave wire mesh and twill weave wire mesh in which the weft wires passes alternately over and under two warp wire forming a finer mesh in the warp direction and the warp wires forms a coarser mesh in the warp direction in the same weaving. Monel 400 Twill Dutch weave wire mesh is superior to the twill weave wire mesh because of the finer openings. It can support greater loads than the Dutch weave wire mesh. The Dutch Twill Weave has the finest filtration rates obtained with this type of weave. This type of weave is made up of a limited number of warp wires interwoven with the maximum number of weft wires, thereby forming a firm and strong cloth. The Monel 400 Twill Dutch weave has a high filtering level and high pressure load resistance.
Monel 400 Twill Dutch Weave Mesh is produced with the weft wires packed together in the same principle as Plain Dutch Weave but with double the number of weft wires woven in an over two, under two pattern. The weft wires overlie each other creating a sinuous path of filtration making the cloth robust with a smooth surface and the finer weft wires and micro pore sizes provide outstanding flow characteristics.
Advantages/ Features of Monel 400 Twill Dutch Weave Wire Mesh
- Better filtering performance because of Finer Openings
- Can be used for filtering ultra-fine products.
- Finest filtration rates are obtained with this type of weave.
- Zero aperture and Light-proof woven.
- Extremely low absolute grade of fineness (down to 5 – 6 μm).
- High resistance due to tight wire position.
- Excellent Finish, High Strength, and Low Maintenance.
- Fine Stability, High Precision, with Special Filtration Performance.
- High Filtering level and High Pressure Load Resistance.
- Corrosion-Resistant, Rust Proof and Acid and alkali resistant.
- Highly Durable, Can be Easily Cut and Shaped.
- Quality Monel 400 Twill Dutch Weave Wire Mesh Delivered in a roll.
Monel 400 Twill Dutch Weave Wire Mesh is available in different sizes and wide-range can be customized to fit your exact specifications in order to meet your specific application requirements. The Monel 400 Twill Dutch Weave Wire Mesh can be Woven and Welded. We offer an exclusive range of Monel 400 Twill Dutch Weave Wire Mesh at unmatched quality and market leading prices.
Applications/Usage of Monel 400 Twill Dutch Weave Wire Mesh
The Monel 400 Twill Dutch Weave Wire Mesh is extensively used for filtering heavy materials since it supports greater loads than the dutch weave and has finer openings than the plain weave. Monel 400 Twill Dutch Weave Wire Mesh is widely utilized as the finest filtration in hydraulic systems, especially for critical applications, such as aero-space and fuel and find applications in a wide range of industries according to mesh sizes and Monel 400 Twill Dutch Weave Wire Mesh materials.
Order the products your company requires, Contact Indo German Wire Screen Co. at 91 - 9820291268 or submit an Enquiry Form for more information on any of our high quality products and get quotes within hours.
For more information, please Download Brochure
Monel 400 Twill Dutch Weave Wire Mesh Latest Price
|Monel 400 Twill Dutch Weave Wire Mesh Latest Price:||____________ Rs/pc|
*Prices shown above are provisional prices and may change due to different market conditions. For latest prices please Contact Us at 91 – 9820291268 or send an enquiry through the Enquiry Form to get the final price within hours. Please request the updated price list and ready stock information along with your requirement. Indo German Wire Screen Co. maintains a stock of all standard items and can supply them at the best price.
Specifications of Monel 400 Twill Dutch Weave Wire Mesh
|Company||Indo German Wire Screen Co.|
|Category||Wire mesh weave types|
|Product name||Monel 400 Twill Dutch Weave Wire Mesh|
|Mesh Size (per inch)||Very Fine|
|Surface Finish||Mill Finish|
|Applications / Usage||Industrial applications|
|Min order Quantity||1 Roll|
|Packaging Details||Rolls / As per client’s requirement.|
Get Latest Price
