Twill Dutch Weave Woven Wire Mesh

Twill Dutch Weave Woven Wire Mesh Supplier

Twill Dutch Weave Woven Wire Mesh is technically wire mesh panel accurately manufactured by woven to size in the same technique cloth is woven manufactured on a loom. Twill Dutch Woven Wire Mesh is the combination of dutch Woven Wire Mesh and twill Woven Wire Mesh in which the weft wires passes alternately over and under two warp wire forming a finer mesh in the warp direction and the warp wires forms a coarser mesh in the warp direction in the same weaving. Twill dutch Woven Wire Mesh is superior to the twill Woven Wire Mesh because of the finer openings. It can support greater loads than the Dutch Woven Wire Mesh. The Dutch Twill Weave is the finest filtration rate obtained with this type of weave. This type of weave is made up of a limited number of warp wires interwoven with the maximum number of weft wires, thereby forming a firm and strong cloth. The Twill Dutch weave has a high filtering level and high pressure load resistance.

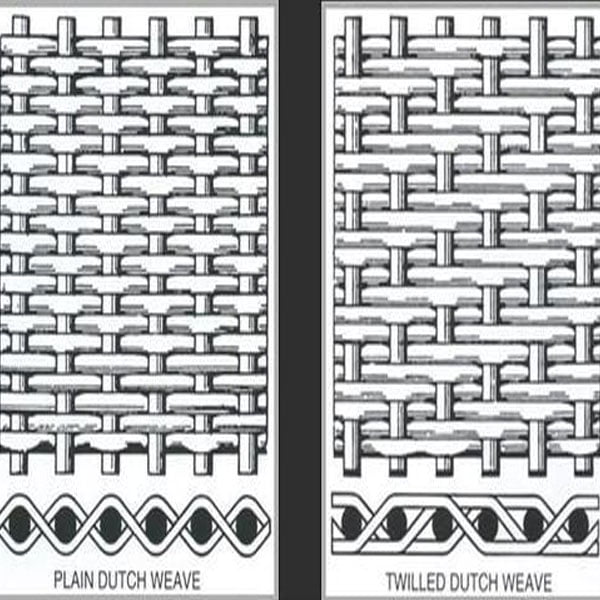

Twill Dutch Weave Mesh is produced with the weft wires packed together in the same principle as Plain Dutch Weave but with double the number of weft wires woven in an over two, under two pattern. The weft wires overlie each other creating a sinuous path of filtration making the cloth robust with a smooth surface and the finer weft wires and micro pore sizes provide outstanding flow characteristics.

It is particularly useful because it works perfectly with hot or cold liquids, is extremely chemical resistant, and can be easily cleaned. Twill Dutch Weave Woven Wire Mesh is normally woven on looms, like looms that are normally used to weave cloth. In this case, wires, not yarn, are used to produce wire mesh. The loom terms—heddles, reeds, and bobbin—are the same. Because the pre-straightened wires are welded at the intersections, relatively thinner diameter wires can be used over larger spaces. The mesh itself will remain strong and stable with a high percentage of open area.

Twill Dutch Weave Woven Wire Meshes are exceptionally multipurpose and adaptable and easy to install, and are used in numerous applications. Heavier woven wires must be pre-crimped as the material rests stable and rigid after the crimping process. Twill Dutch Weave Woven Wire Mesh is ideal for both industrial & architectural applications.

• Advantages/ Features of Twill Dutch Weave Woven Wire Mesh
• Better filtering performance because of Finer Openings
• Can be used for filtering ultra-fine products.
• Finest filtration rates are obtained with this type of weave.
• Zero aperture and Light-proof woven.
• Extreme low absolute grade of fineness (down to 5 – 6 μm).
• High resistance due to tight wire position.
• Excellent Finish, High Strength, and Low Maintenance.
• Fine Stability, High Precision, with Special Filtration Performance.
• High Filtering level and High Pressure Load Resistance.
• Corrosion-Resistant, Rust Proof and Acid and alkali resistant.
• Highly Durable, Can be Easily Cut and Shaped.
• Quality Twill Dutch Woven Wire Mesh Delivered in a roll.

Twill Dutch Weave Woven Wire Mesh is available in different sizes and wide-range can be customized to fit your exact specifications in order to meet your specific application requirements. We offer an exclusive range of Twill Dutch Weave Woven Wire Mesh at unmatched quality and market leading prices.

Applications/Usage of Twill Dutch Weave Woven Wire Mesh

Twill Dutch Woven Wire Mesh is extensively used for filtering heavy materials since it supports greater loads than the dutch weave and has finer openings than the plain weave. Twill Dutch Woven Wire Mesh is widely utilized as the finest filtration in hydraulic systems, especially for critical applications, such as aero-space and fuel and find applications in a wide range of industries according to mesh sizes and Twill Dutch Woven Wire Mesh materials.
