Nickel Five Shed Twill Weave Wire Mesh Manufacturer, Supplier and Exporter in Mumbai, India
Nickel five shed twill weave wire mesh is a smooth faced filter cloth woven from commercially pure Nickel 200 or 201, with at least 99.0% nickel. It comes in rolls, cut pieces and fabricated parts. B2B buyers use it for caustic soda filtration, phenol handling, soap and synthetic fibre production and hydrogen chloride plants across India.
Indo German Wire Screen Co. is one of India's most trusted manufacturers, suppliers and exporters of nickel five shed twill weave wire mesh. Since 1996 we have served 5,000+ industrial buyers in India and 50+ countries from our works in Andheri East, Mumbai. Every supply carries a mill test certificate for the stated grade, and our in-house team cuts and fabricates mesh into discs, filters, sieves and framed screens, with dispatch to every Indian state and export packing for overseas orders.
- Material
- Nickel 200 (UNS N02200), Ni 99.0% min, C 0.15% max
- Supply form
- Rolls, cut pieces, fabricated parts
- Documents
- Mill test certificate, inspection report
- Low carbon grade
- Nickel 201 (UNS N02201), C 0.02% max
- Weave

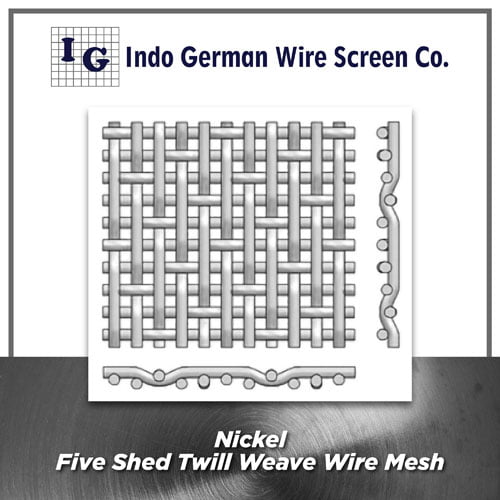

- Five shed satin: each weft under one of five warps, over four
₹2,100 to ₹4,000 per sq ft · Tentative, GST extra
The tentative price of nickel five shed twill weave wire mesh in India is ₹2,100 to ₹4,000 per sq ft, GST extra. The final rate depends on warp and weft count, wire diameter, width, quantity and the current nickel rate, and is confirmed in a written quotation.
Related products
Related Products: Five Shed Twill Weave Wire Mesh in Other Metals
Nickel is the caustic alkali metal in this weave. Monel 400 adds copper for seawater, Nichrome A adds chromium for heat, Hastelloy handles strong acids, and stainless steel covers general duty at lower cost. View all five shed twill weave wire mesh

Aluminium Five Shed Twill Weave Wire Mesh
Lightweight
Brass Five Shed Twill Weave Wire Mesh
Copper-zinc
Bronze Five Shed Twill Weave Wire Mesh
Bronze alloy
Copper Five Shed Twill Weave Wire Mesh
Conductive
Hastelloy Five Shed Twill Weave Wire Mesh
Strong acids
Inconel Five Shed Twill Weave Wire Mesh
High heat
Iron Five Shed Twill Weave Wire Mesh
Low cost
Monel 400 Five Shed Twill Weave Wire Mesh
Seawater
Mild Steel Five Shed Twill Weave Wire Mesh
Weldable
Nichrome A Five Shed Twill Weave Wire Mesh
Heating alloy
Nickel Five Shed Twill Weave Wire Mesh
This page
Steel Five Shed Twill Weave Wire Mesh
Carbon steel
Stainless Steel Five Shed Twill Weave Wire Mesh
General duty
Stainless Steel Welded Five Shed Twill Weave Wire Mesh
Welded SS
Titanium Five Shed Twill Weave Wire Mesh
Chlorides
Tungsten Five Shed Twill Weave Wire Mesh
Vacuum heat
Overview
Nickel Five Shed Twill Weave Wire Mesh Overview
Nickel five shed twill weave wire mesh is woven from wrought nickel with 99.0% minimum nickel, which is extremely resistant to caustic alkalis up to the molten state. It is ferromagnetic with good electrical and thermal conductivity. The five shed pattern gives a smooth cake face and a rough, draining back.
- Also calledNickel 200 or 201 five heddle or atlas weave cloth
- Made asfive shed satin cloth in rolls and cut pieces
- Holds up incaustic alkalis and acid, alkaline or neutral salts
- Common incaustic soda, phenol, soap and fibre plants
- Not forsulphur compounds above 315 °C
Quality and supply
Nickel Five Shed Twill Weave Wire Mesh Quality and Supply
Every roll is woven from traceable nickel wire and checked for mesh count, wire size and opening before it leaves our Mumbai works. A mill test certificate comes with each supply, so your quality team can confirm the grade without extra testing.
- Traceable nickel wiremill test certificate with grade chemistry
- Checked before dispatchmesh count, wire size and opening
- Inspection reportsupplied with every order
- Sample pieceavailable before a bulk order
- Supplied asrolls, cut pieces and fabricated filter parts
- Export packingseaworthy wooden case for export orders
Specifications
Nickel Five Shed Twill Weave Wire Mesh Specifications
Nickel five shed twill weave wire mesh is specified by grade, warp and weft count and pore size.
| Material | Nickel 200 (UNS N02200), Ni 99.0% min, C 0.15% max |
|---|---|
| Low carbon grade | Nickel 201 (UNS N02201), C 0.02% max |
| Weave | Five shed satin: each weft under one of five warps, over four |
| Surface | Smooth top face, rough open back |
| Pore size | From about 50 micron |
|---|---|
| Supply form | Rolls, cut pieces, fabricated parts |
| Documents | Mill test certificate, inspection report |
HSN 7508 1000, GST 18%.
Key features
Nickel Five Shed Twill Weave Wire Mesh Key Features
Nickel five shed twill weave wire mesh is chosen for cake filtration of caustic liquors and of products that must stay pure. Pure nickel resists hydroxides, has good ductility with a low work hardening rate, and the smooth five shed face lets cake build evenly and release cleanly.
- Caustic resistanceextreme, up to molten caustic alkalis
- Product purityhelps keep foods and fibres clean
- Low work hardeningforms into filter parts easily
- Conductivitygood electrical and thermal conductivity
- Even cakesmooth face, effective cleaning
- Ferromagneticboth Nickel 200 and 201
Advantages
Nickel Five Shed Twill Weave Wire Mesh Advantages
Nickel cloth costs more than stainless steel but is chosen for caustic alkalis, which it resists up to the molten state. Against twill Dutch nickel cloth, the five shed weave trades the finest retention for higher flow and easier cake release.
- Alkali dutyresists caustic up to the molten state
- Higher flowthan tortuous twill Dutch nickel cloth
- Hot service gradeNickel 201 above 315 °C
- Clean productsmaintains purity of foods and fibres
Need nickel five shed twill weave wire mesh in a specific warp and weft count?
Tell us the warp and weft count or pore size, roll size and quantity. Our sales team replies with a written quotation, usually the same working day.
Your enquiry opens in WhatsApp, ready to send.
Applications
Nickel Five Shed Twill Weave Wire Mesh Applications
Nickel five shed twill weave wire mesh is used where caustic liquors or pure products pass through a cloth that must release its cake cleanly. Indo German Wire Screen Co., an industrial wire mesh manufacturer in Mumbai, supplies it in rolls, cut pieces and fabricated parts for filter leaves, discs and drum covers. Share your application and we will suggest the right mesh, wire and finish.
The main use of Nickel 200 lies in the electrolytic extraction of caustic soda from salt solutions and its later concentration. In these lines, five shed nickel cloth suits drum, disc and press filters, where the smooth face builds an even cake and backwashing keeps the cloth clean.
Nickel 200 and 201 also serve phenol storage and transport, synthetic fibre and soap production, hydrogen chloride production and the chlorination of hydrocarbons. Because nickel helps keep foods and synthetic fibres pure, five shed nickel screens suit product filters in these plants.
Industries served
Nickel Five Shed Twill Weave Wire Mesh Applications by Industry
Our wire mesh serves 30 industries, and nickel five shed twill weave wire mesh is used across many of them, from caustic soda and hydrogen chloride lines in the chemical industry to soap and fibre filtration in the synthetic fibres sector and pure product filters in the food processing industry. Open any industry to see how our wire mesh is used there.
Aeronautics Industry
Agriculture Sector
Asbestos Industry
Atomic Power Station
Automobile Industry
Building And Construction
Cement Industry
Ceramic Tile Industry
Chemical Industry
Coal Mines Industries
Dehydration Plant
Dryers Industries
Fabrication Industry
Fertilizer Sector
Food Processing Industry
Glass Industry
Granules Manufacturing
Imitation Jewellery
Irrigation Projects
Mining Sector
Pest And Critter Control
Pharmaceuticals Sector
Pulp And Paper Industry
Pulverising Units
Rayon Industry
Rubber Industries
Steel Industry
Stone Crusher
Straw Board Industry
Synthetic Fibres Sector
Why Indo German
Why buyers source nickel five shed twill weave wire mesh from Indo German Wire Screen
Indo German Wire Screen Co. is a Mumbai wire mesh manufacturer supplying nickel five shed twill weave wire mesh since 1996 to 5,000+ industrial buyers in India and 50+ countries, with genuine pure nickel grade and in-house fabrication.
- Genuine nickel grademill test certificate on every supply
- Consistent weavewarp and weft counts checked before dispatch
- One supplierrolls, cut pieces and fabricated filter parts
- Samples firstcheck the smooth face before bulk
- Clear pricingGST and freight shown on every quote
- Pan-India dispatchroad or courier from Andheri East, Mumbai
How we work
How ordering works
Ordering takes six steps, from your enquiry to delivery at site. Quotes for stock sizes usually go out the same working day.
Share your requirement
Warp and weft count or pore size, size, quantity and use. A photo also works.
We check the fit
We confirm the right grade, weave and mesh for your process.
Get a written quote
Priced per metre, sq m, kg or piece, with GST and freight shown.
Approve a sample
Sample piece and mill certificate shared on request.
Production and inspection
Mesh checked against your order before packing.
Delivery across India
Road transport or courier, with tracking details.
FAQs
FAQs on Buying Nickel Five Shed Twill Weave Wire Mesh in India and Overseas
Where can I buy nickel five shed twill weave wire mesh in India?
You can buy it directly from Indo German Wire Screen Co., a wire mesh manufacturer in Andheri East, Mumbai. We supply rolls, cut pieces and fabricated parts to buyers in every Indian state by road transport or courier.
What is the price of nickel five shed twill weave wire mesh per sq ft?
Nickel cloth is priced mainly on the current nickel rate, then the warp and weft count, wire diameter, roll width and quantity, plus any fabrication. We quote per sq ft, metre, kg or piece, and send a written quotation, usually the same working day.
What is the difference between nickel five shed twill weave and nickel twill Dutch weave wire mesh?
Twill Dutch nickel cloth packs fine weft wires over two and under two until they cover the warp, giving the finest particle retention in wire cloth. Nickel five shed cloth is coarser, from about 50 micron, but gives high flow, an even cake on its smooth face and easy cleaning.
Should I choose Nickel 200 or Nickel 201 five shed twill weave wire mesh?
Nickel 200 carries up to 0.15% carbon, while Nickel 201 holds carbon to 0.02% maximum, which prevents embrittlement above 315 °C. Choose 201 for hot service, but keep both grades away from sulphur compounds above that temperature. Share your liquor and temperature to confirm the grade.
Can I order a small quantity or a sample first?
Yes. For stock sizes we supply single cut pieces and samples, so you can check the weave and grade before placing a bulk order for full rolls.
Do you export five shed twill weave wire mesh to other countries?
Yes, to more than 50 countries across the Gulf, Africa, Asia and beyond. Export orders are packed in seaworthy wooden cases and shipped with invoice, packing list, certificate of origin and mill test certificate.
