Titanium Five Shed Twill Weave Wire Mesh Manufacturer, Supplier and Exporter in Mumbai, India

Titanium five shed twill weave wire mesh is a smooth-faced, high flow filter cloth woven from commercially pure Grade 2 titanium wire in a 5-heddle atlas pattern. It comes in rolls, cut pieces and fabricated parts. B2B buyers use it for seawater and brine filters and for desalination, chlor-alkali and bleaching plant screens across India.

Indo German Wire Screen Co. is one of India's most trusted manufacturers, suppliers and exporters of titanium five shed twill weave wire mesh. Since 1996 we have served 5,000+ industrial buyers in India and 50+ countries from our works in Andheri East, Mumbai. Every supply carries a mill test certificate for the stated grade, and our in-house team cuts and fabricates mesh into discs, filters, sieves and framed screens, with dispatch to every Indian state and export packing for overseas orders.

Material
Commercially pure titanium Grade 2 (UNS R50400)
Supply form
Rolls, cut pieces, fabricated parts
Documents
Mill test certificate, inspection report
Composition
Ti balance; Fe 0.30% max, O 0.25% max, C 0.08% max
Density
4.51 g/cm³

₹2,600 to ₹4,800 per sq ft · Tentative, GST extra

The tentative price of titanium five shed twill weave wire mesh in India is ₹2,600 to ₹4,800 per sq ft, GST extra. The final rate depends on warp and weft counts, wire diameters, width, quantity and the current titanium wire rate, and is confirmed in a written quotation.

Titanium Five Shed Twill Weave Wire Mesh Overview

Titanium five shed twill weave wire mesh is woven from commercially pure titanium Grade 2 (UNS R50400), with iron held to 0.30% and oxygen to 0.25%. A stable oxide film protects it in seawater, brines and wet chlorine gas, and at 4.51 g/cm³ it weighs about half as much as stainless steel.

  • Also calledTi Grade 2 5-heddle atlas weave, titanium satin cloth
  • Made assmooth-faced filter cloth, rough on the back
  • Holds up inseawater, brines and wet chlorine
  • Common indesalination, chlor-alkali and bleaching filters
  • Not forhydrofluoric or hydrochloric acid

Titanium Five Shed Twill Weave Wire Mesh Quality and Supply

Every roll is woven from traceable titanium wire and checked for mesh count, wire size and opening before it leaves our Mumbai works. A mill test certificate comes with each supply, so your quality team can confirm the grade without extra testing.

  • Traceable wiremill test certificate on every supply
  • Checked before dispatchmesh count, wire size and opening
  • Inspection reportshared with every supply
  • Sample pieceavailable before you place a bulk order
  • Supplied asrolls, cut pieces and fabricated parts
  • Packingseaworthy wooden case for export orders

Titanium Five Shed Twill Weave Wire Mesh Specifications

MaterialCommercially pure titanium Grade 2 (UNS R50400)
CompositionTi balance; Fe 0.30% max, O 0.25% max, C 0.08% max
Density4.51 g/cm³

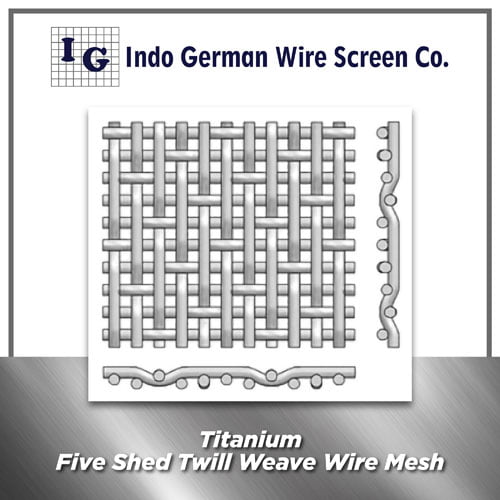

Weave5-heddle atlas: weft under one and over four warp wires
Wire standardASTM B863
Supply formRolls, cut pieces, fabricated parts
DocumentsMill test certificate, inspection report

HSN 8108 9090, GST 18%.

Titanium Five Shed Twill Weave Wire Mesh Standards, Grades

Grade 2 titanium wire for this cloth falls under ASTM B863, the wire specification for unalloyed and alloyed titanium.

Standards

  • ASTM B863 for titanium and titanium alloy wire

Grades

  • Grade 2, standard oxygen

Titanium Five Shed Twill Weave Wire Mesh Key Features

Titanium five shed twill weave wire mesh brings seawater resistant titanium to a weave made for cake filtration. Grade 2 is immune to chloride stress corrosion cracking and resists seawater pitting, while the smooth top face spreads cake evenly and lets it release cleanly.

  • Seawater dutyimmune to pitting and crevice attack
  • No chloride crackingcomplete immunity to chloride SCC
  • Wet chlorineexcellent with wet chlorine and chlorine dioxide
  • Light clothabout 45% lighter than steel
  • Smooth faceeven cake layer and clean release
  • Weldableexcellent welding properties for framed parts

Titanium Five Shed Twill Weave Wire Mesh Advantages

Where stainless steel cloth faces brine or seawater, titanium resists pitting and crevice corrosion at all seawater temperatures, and it weighs about half as much. Large drum and disc filter panels stay lighter, and the 5-heddle face still sheds cake cleanly.

  • Any seawater temperatureresists pitting, crevice attack and cracking
  • Half the weightof stainless steel and nickel alloys
  • Chlorine plantshandles wet chlorine and chlorine dioxide

Need titanium five shed twill weave wire mesh in a specific mesh or size?

Tell us the mesh count, size and quantity. Our sales team replies with a written quotation, usually the same working day.

Your enquiry opens in WhatsApp, ready to send.

Titanium Five Shed Twill Weave Wire Mesh Applications

Titanium five shed twill weave wire mesh is used where cake filtration meets seawater, brine or wet chlorine. Indo German Wire Screen Co., an industrial wire mesh manufacturer in Mumbai, supplies it in rolls, cut pieces and fabricated parts for chloride service filters. Share your application and we will suggest the right mesh, wire and finish.

  • In water and power plants, Grade 2 titanium serves desalination, offshore seawater cooling and condensers. Five shed cloth in titanium suits process water filtration on these lines, including drum and disc filters that build, clean and backwash their cake in continuous cycles.

  • In chemical work, Grade 2 is used in chlor-alkali plants, chlorine dioxide production and pulp and paper bleaching. The smooth face of the weave lets solids be removed from the cloth, while the titanium resists the wet chlorine around it. Hydrochloric and hydrofluoric acid lines need another metal.

Titanium Five Shed Twill Weave Wire Mesh Applications by Industry

Our wire mesh serves 30 industries, and titanium five shed twill weave wire mesh is used across many of them, from chlor-alkali filters in the chemical industry and bleach plant screens in the pulp and paper industry to seawater filters for desalination and power plant cooling. Open any industry to see how our wire mesh is used there.

Why buyers source titanium five shed twill weave wire mesh from Indo German Wire Screen

Indo German Wire Screen Co. is a Mumbai wire mesh manufacturer supplying titanium five shed twill weave wire mesh since 1996 to 5,000+ industrial buyers in India and 50+ countries, with certified Grade 2 titanium and in-house fabrication.

  • Genuine Grade 2 titaniummill test certificate on every supply
  • Consistent weavemesh count and opening checked before dispatch
  • One supplierrolls, cut pieces and fabricated parts
  • Samples firsttest a piece before you place a bulk order
  • Clear pricingwritten quotes with GST and freight shown
  • Pan-India dispatchfrom Andheri East, Mumbai to every state

How ordering works

Ordering takes six steps, from your enquiry to delivery at site. Quotes for stock sizes usually go out the same working day.

  1. Share your requirement

    Mesh or micron, size, quantity and use. A photo also works.

  2. We check the fit

    We confirm the right grade, weave and mesh for your process.

  3. Get a written quote

    Priced per metre, sq m, kg or piece, with GST and freight shown.

  4. Approve a sample

    Sample piece and mill certificate shared on request.

  5. Production and inspection

    Mesh checked against your order before packing.

  6. Delivery across India

    Road transport or courier, with tracking details.

FAQs on Buying Titanium Five Shed Twill Weave Wire Mesh in India and Overseas

Where can I buy titanium five shed twill weave wire mesh in India?

You can buy it directly from Indo German Wire Screen Co., a wire mesh manufacturer in Andheri East, Mumbai. We supply rolls, cut pieces and fabricated parts to buyers in every Indian state by road transport or courier.

What is the price of titanium five shed twill weave wire mesh per sq ft?

Titanium cloth is priced on the current titanium wire rate, which sits well above stainless steel, and then on the warp and weft counts, wire diameters, width and quantity. We quote per sq ft, metre, kg or piece in a written quotation, usually the same working day.

What is the difference between titanium five shed twill weave and titanium reverse Dutch weave wire mesh?

Reverse Dutch weave packs fine warp wires tightly and stabilises them with thicker weft wires, giving very fine, nearly opaque cloth with high strength. Five shed weave floats each weft over four warp wires, leaving a smooth face and oblong pores above 50 micron for high flow and cake release.

Is titanium five shed twill weave wire mesh lighter than stainless steel?

Yes. Grade 2 titanium has a density of 4.51 g/cm³, about half that of stainless steels and nickel alloys, so a titanium drum or disc filter panel weighs much less than a stainless one of the same size. That helps when large panels are lifted for cleaning or change-out.

Can I order a small quantity or a sample first?

Yes. For stock sizes we supply single cut pieces and samples, so you can check the weave and grade before placing a bulk order for full rolls.

Do you export five shed twill weave wire mesh to other countries?

Yes, to more than 50 countries across the Gulf, Africa, Asia and beyond. Export orders are packed in seaworthy wooden cases and shipped with invoice, packing list, certificate of origin and mill test certificate.

Enquire About Titanium Five Shed Twill Weave Wire Mesh

Share your name and mobile number. Our sales team will call or WhatsApp you with prices and details.

Or call +91 79772 72451 sales@igwirescreen.com

Wire Mesh Products Subcategories

Indo German Wire Screen Co. makes wire mesh in 20+ metals, every common weave and shape, from 2 to 500 mesh, plus filters and screens. Pick a group to see the full range.

Check the weave before you place a bulk order

Ask for a sample piece of titanium five shed twill weave wire mesh with its mill test certificate, so your quality team can verify grade, wire size and opening first.
