Steel Five Shed Twill Weave Wire Mesh Manufacturer, Supplier and Exporter in Mumbai, India
Steel five shed twill weave wire mesh is a smooth-faced filter cloth woven from plain carbon steel wire in a 5-heddle atlas pattern, each weft wire passing under one warp wire and over four. It comes in rolls, cut pieces and fabricated parts. B2B buyers use it for oil strainers, filtration discs and separation screens across India.
Indo German Wire Screen Co. is one of India's most trusted manufacturers, suppliers and exporters of steel five shed twill weave wire mesh. Since 1996 we have served 5,000+ industrial buyers in India and 50+ countries from our works in Andheri East, Mumbai. Every supply carries a mill test certificate for the stated grade, and our in-house team cuts and fabricates mesh into discs, filters, sieves and framed screens, with dispatch to every Indian state and export packing for overseas orders.
- Material
- Plain carbon steel, mainly iron (Fe) with a small amount of carbon (C)
- Supply form
- Rolls, cut pieces, fabricated parts
- Documents
- Mill test certificate, inspection report
- Steel grades
- Low carbon (C1008) or high carbon hard drawn wire
- Weave

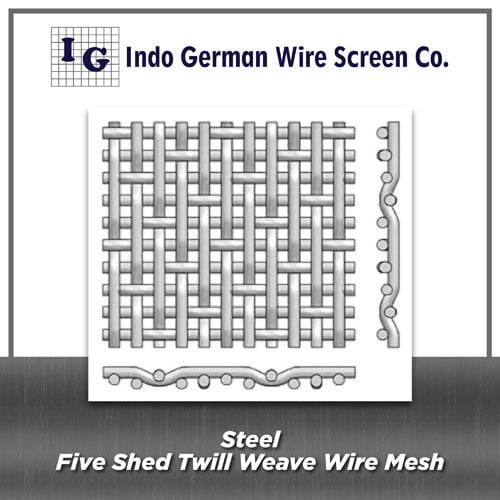

- 5-heddle atlas: each weft under one of five warp wires, over four
₹140 to ₹260 per sq ft · Tentative, GST extra
The tentative price of steel five shed twill weave wire mesh in India is ₹140 to ₹260 per sq ft, GST extra. The final rate depends on warp and weft counts, wire diameters, steel grade, width, quantity and the current steel wire rate, and is confirmed in a written quotation.
Related products
Related Products: Five Shed Twill Weave Wire Mesh in Other Metals
The weave stays the same across these metals; the wire sets the duty. Plain steel keeps cost lowest, stainless steel adds corrosion resistance, titanium handles chlorides and tungsten works in vacuum heat. View all five shed twill weave wire mesh

Aluminium Five Shed Twill Weave Wire Mesh
Lightweight
Brass Five Shed Twill Weave Wire Mesh
Non-ferrous
Bronze Five Shed Twill Weave Wire Mesh
Non-ferrous
Copper Five Shed Twill Weave Wire Mesh
Conductive
Hastelloy Five Shed Twill Weave Wire Mesh
Acid duty
Inconel Five Shed Twill Weave Wire Mesh
Heat duty
Iron Five Shed Twill Weave Wire Mesh
Economical
Monel 400 Five Shed Twill Weave Wire Mesh
Seawater
Mild Steel Five Shed Twill Weave Wire Mesh
Economical
Nichrome A Five Shed Twill Weave Wire Mesh
Heating alloy
Nickel Five Shed Twill Weave Wire Mesh
Alkali duty
Steel Five Shed Twill Weave Wire Mesh
This page
Stainless Steel Five Shed Twill Weave Wire Mesh
Corrosion
Stainless Steel Welded Five Shed Twill Weave Wire Mesh
Welded parts
Titanium Five Shed Twill Weave Wire Mesh
Chlorides
Tungsten Five Shed Twill Weave Wire Mesh
Vacuum heat
Overview
Steel Five Shed Twill Weave Wire Mesh Overview
Steel five shed twill weave wire mesh is woven from plain steel, mainly iron with a small amount of carbon. Each weft wire floats over four warp wires and under one, leaving a smooth top face and a rough back. The steel is strong and magnetic at low cost, but it rusts in most atmospheres.
- Also calledcarbon steel 5-heddle atlas weave, satin weave cloth
- Made aslow carbon or high carbon steel wire cloth
- Holds up indry or oily service kept away from moisture
- Common inoil strainers, filtration discs and separation screens
- Finishdark plain steel, smooth on the top face
- Not fordamp or wet duty, where plain steel rusts
Quality and supply
Steel Five Shed Twill Weave Wire Mesh Quality and Supply
Every roll is woven from traceable carbon steel wire and checked for mesh count, wire size and opening before it leaves our Mumbai works. A mill test certificate comes with each supply, so your quality team can confirm the grade without extra testing.
- Traceable wiremill test certificate on every supply
- Checked before dispatchmesh count, wire size and opening
- Inspection reportshared with every supply
- Sample pieceavailable before you place a bulk order
- Supplied asrolls, cut pieces and fabricated parts
- Packingseaworthy wooden case for export orders
Specifications
Steel Five Shed Twill Weave Wire Mesh Specifications
| Material | Plain carbon steel, mainly iron (Fe) with a small amount of carbon (C) |
|---|---|
| Steel grades | Low carbon (C1008) or high carbon hard drawn wire |
| Weave | 5-heddle atlas: each weft under one of five warp wires, over four |
| Surface | Smooth top face, rough back |
| Pore size | From about 50 micron upward |
|---|---|
| Supply form | Rolls, cut pieces, fabricated parts |
| Documents | Mill test certificate, inspection report |
HSN 7314 1910, GST 18%.
Standards and grades
Steel Five Shed Twill Weave Wire Mesh Grades
Steel wire mesh is made in low carbon and high carbon grades, and the grade decides how the cloth copes with impact and abrasion.
Grades
Key features
Steel Five Shed Twill Weave Wire Mesh Key Features
Steel five shed twill weave wire mesh pairs a smooth, easy-release face with the tensile strength of carbon steel. Filter cake forms in an even layer on the top surface and lifts off cleanly, while the rough back helps keep pores from blocking.
- Smooth top facefilter cake forms evenly and lifts off
- Rough backhelps stop pores from blocking
- High flowhigh flow rates with mechanical stability
- Tensile strengthlow carbon steel resists impact
- Abrasion optionhigh carbon wire for abrasive duty
- Magneticplain steel wire is magnetic
Advantages
Steel Five Shed Twill Weave Wire Mesh Advantages
Against stainless steel five shed cloth, plain steel costs less, which suits filter parts that are scraped, worn and replaced. Against plain weave steel cloth, the five shed pattern releases filter cake more cleanly and gives finer openings.
- Lower metal costplain steel is relatively low cost
- Replace on schedulelow cost suits disposable screens
- Cleaner cake releasethan plain weave cloth
- Grade choicelow or high carbon to suit wear
Need steel five shed twill weave wire mesh in a specific mesh or size?
Tell us the mesh count, size and quantity. Our sales team replies with a written quotation, usually the same working day.
Your enquiry opens in WhatsApp, ready to send.
Applications
Steel Five Shed Twill Weave Wire Mesh Applications
Steel five shed twill weave wire mesh is used where a filter face must shed its cake cleanly and the metal must stay low in cost. Indo German Wire Screen Co., an industrial wire mesh manufacturer in Mumbai, supplies it in rolls, cut pieces and fabricated parts for strainers, discs and screens. Share your application and we will suggest the right mesh, wire and finish.
In separation and filtration, plain steel mesh is used for oil strainers and filtration discs, and the five shed weave adds a smooth face where solids gather. Cake that builds on that face can be scraped away, as in the filter presses and vacuum filters that use satin weave cloth.
For abrasive work, high carbon hard drawn steel is used where wear and impact must be resisted, in coal, gravel, mining, sand and stone separation. Low carbon C1008 steel gives tensile strength and impact resistance, but its low resistance to abrasion and corrosion limits it in wet or abrasive duty.
Industries served
Steel Five Shed Twill Weave Wire Mesh Applications by Industry
Our wire mesh serves 30 industries, and steel five shed twill weave wire mesh is used across many of them, from oil strainers and filtration discs in the fabrication industry to sand and stone separation for the stone crusher trade and coal mines industries. Open any industry to see how our wire mesh is used there.
Aeronautics Industry
Agriculture Sector
Asbestos Industry
Atomic Power Station
Automobile Industry
Building And Construction
Cement Industry
Ceramic Tile Industry
Chemical Industry
Coal Mines Industries
Dehydration Plant
Dryers Industries
Fabrication Industry
Fertilizer Sector
Food Processing Industry
Glass Industry
Granules Manufacturing
Imitation Jewellery
Irrigation Projects
Mining Sector
Pest And Critter Control
Pharmaceuticals Sector
Pulp And Paper Industry
Pulverising Units
Rayon Industry
Rubber Industries
Steel Industry
Stone Crusher
Straw Board Industry
Synthetic Fibres Sector
Why Indo German
Why buyers source steel five shed twill weave wire mesh from Indo German Wire Screen
Indo German Wire Screen Co. is a Mumbai wire mesh manufacturer supplying steel five shed twill weave wire mesh since 1996 to 5,000+ industrial buyers in India and 50+ countries, with low cost carbon steel and in-house fabrication.
- Genuine carbon steelmill test certificate on every supply
- Consistent weavemesh count and opening checked before dispatch
- One supplierrolls, cut pieces and fabricated parts
- Samples firsttest a piece before you place a bulk order
- Clear pricingwritten quotes with GST and freight shown
- Pan-India dispatchfrom Andheri East, Mumbai to every state
How we work
How ordering works
Ordering takes six steps, from your enquiry to delivery at site. Quotes for stock sizes usually go out the same working day.
Share your requirement
Mesh or micron, size, quantity and use. A photo also works.
We check the fit
We confirm the right grade, weave and mesh for your process.
Get a written quote
Priced per metre, sq m, kg or piece, with GST and freight shown.
Approve a sample
Sample piece and mill certificate shared on request.
Production and inspection
Mesh checked against your order before packing.
Delivery across India
Road transport or courier, with tracking details.
FAQs
FAQs on Buying Steel Five Shed Twill Weave Wire Mesh in India and Overseas
Where can I buy steel five shed twill weave wire mesh in India?
You can buy it directly from Indo German Wire Screen Co., a wire mesh manufacturer in Andheri East, Mumbai. We supply rolls, cut pieces and fabricated parts to buyers in every Indian state by road transport or courier.
What is the price of steel five shed twill weave wire mesh per sq ft?
Steel cloth is priced on the warp and weft counts, wire diameters, the low or high carbon grade, roll width, quantity and the current steel wire rate, plus any cutting into discs. We quote per sq ft, metre, kg or piece and confirm it in a written quote, usually the same working day.
What is the difference between steel five shed twill weave and steel crimped wire mesh?
Crimped mesh is woven from wires bent before weaving, so the crimps lock each crossing and keep coarse openings accurate for vibrating screens. Five shed weave floats each weft over four warp wires and under one, giving a smooth filter face for finer separation and easy cake removal.
Should I choose low carbon or high carbon steel five shed twill weave wire mesh?
Low carbon C1008 steel gives tensile strength and impact resistance at low cost, but resists abrasion poorly. High carbon hard drawn steel is chosen where abrasion and impact both matter, as in coal, gravel and stone separation. Neither resists rust, so wet duty calls for stainless steel.
Can I order a small quantity or a sample first?
Yes. For stock sizes we supply single cut pieces and samples, so you can check the weave and grade before placing a bulk order for full rolls.
Do you export five shed twill weave wire mesh to other countries?
Yes, to more than 50 countries across the Gulf, Africa, Asia and beyond. Export orders are packed in seaworthy wooden cases and shipped with invoice, packing list, certificate of origin and mill test certificate.
