Plain Weave Woven Wire Mesh
- Mesh Size (per inch)
- Fine Mesh
- Surface Finish Coating
- Mill Finish
- Applications / Usage
- Industrial applications
- Min order Quantity
- 1 Roll
- Packaging Details
- Rolls / As per client’s requirement.

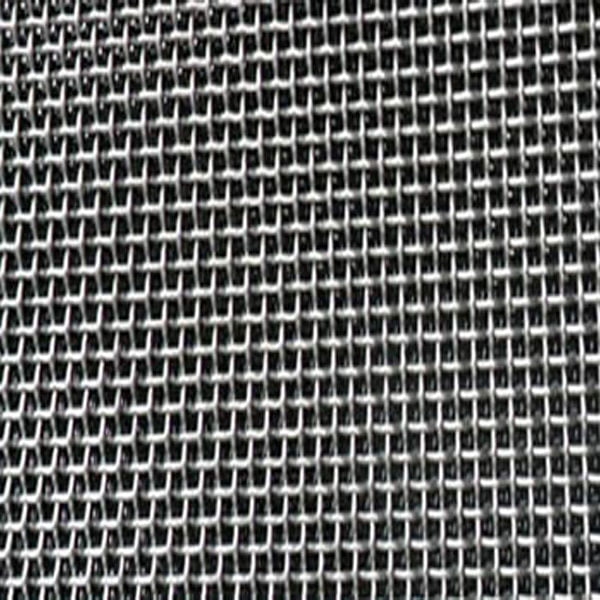

Plain Weave Woven Wire Mesh is technically wire mesh panel accurately manufactured by woven to size in the same technique cloth is woven manufactured on a loom. Plain Woven Wire Mesh or wire cloth is most commonly used square Woven Wire Mesh. In Plain weave wire netting, each warp wire crosses interchangeably above and below each weft wire. Warp wires and weft wires usually have the same diameter. Shute wire- Also known as weft wire that runs across mesh width. Warp wire- It runs in the direction of mesh length. Each weft wire goes alternatively over and under each warp wire, and vice versa. Usually the finer plain Woven Wire Mesh weaves are most commonly used in petrochemical and food processing, chemical, plastic production houses, on the other hand, coarse plain Woven Wire Mesh weaves are used for dewatering, sizing, filter cloth and extruding applications. Plain Woven Wire Meshes are available with apertures from 10.7 mm (2 mesh) to 0.05 mm (325 mesh).
It is particularly useful because it works perfectly with hot or cold liquids, is extremely chemical resistant, and can be easily cleaned. Plain Weave Woven Wire Mesh is normally woven on looms, like looms that are normally used to weave cloth. In this case, wires, not yarn, are used to produce wire mesh. The loom terms—heddles, reeds, and bobbin—are the same. Because the pre-straightened wires are welded at the intersections, relatively thinner diameter wires can be used over larger spaces. The mesh itself will remain strong and stable with a high percentage of open area.
Plain Weave Woven Wire Meshes are exceptionally multipurpose and adaptable and easy to install, and are used in numerous applications. Heavier woven wires must be pre-crimped as the material rests stable and rigid after the crimping process. Plain Weave Woven Wire Mesh is ideal for both industrial & architectural applications.
Plain Weave Woven Wire Mesh is available in different sizes and wide-range can be customized to fit your exact specifications in order to meet your specific application requirements.

Features
- Equal strength of warp and weft wires.
- Easily cleanable with identical apertures.
- Biggest open surface among all meshes.
- Excellent finish, high strength, and low maintenance.
- Sturdy for multi-purpose applications.
- Durable and good strength and toughness.
- Can be easily cut and shaped, and quick to unroll & install.
- Quality Plain Woven Wire Mesh Delivered in a roll.
Where it does the work.
Plain Woven Wire Mesh is extensively used for sieving, particle separation, filtering, safety and equipment protection, window screen, food processing industries, infill panels.
Industries we supply.
FAQs.
All FAQsWhat aperture range does plain weave woven wire mesh cover?
Apertures run from 10.7 mm (2 mesh) to 0.05 mm (325 mesh). Each weft wire passes over and under each warp wire, usually of the same diameter, so strength is equal both ways. Tell us the particle size and we will suggest the count.
What is plain weave woven wire mesh used for?
Sieving, particle separation, filtering and equipment protection are the main uses. Finer cloths serve petrochemical, food, chemical and plastic plants, while coarser ones handle dewatering, sizing and extruding. It also goes into window screens and infill panels.
Why is plain weave the standard choice for woven wire mesh?
Plain weave gives identical square apertures that clean easily, and the biggest open surface among the mesh weaves. Warp and weft carry equal strength. It works with hot or cold liquids, and heavier wires are pre-crimped so the cloth stays stable and rigid.
