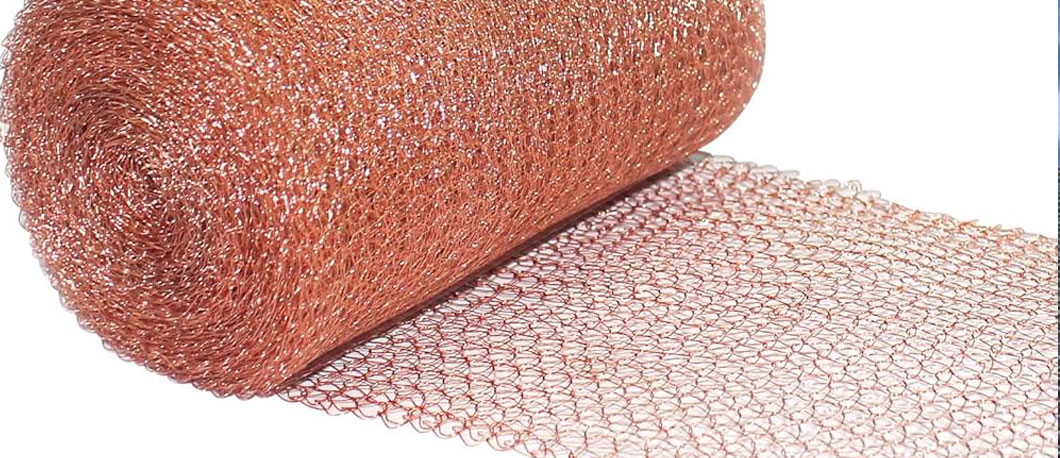

Copper wire mesh is a versatile and highly efficient material for shielding electromagnetic interference (EMI) and radiofrequency interference (RFI). With its superior electrical conductivity, corrosion resistance, and durability, copper wire mesh has become the go-to solution for EMI and RFI shielding across industries such as electronics, aerospace, medical, and telecommunications. This blog explores the unique properties, benefits, applications, and types of copper wire mesh that make it an indispensable choice for modern shielding needs.
For more information, visit our Wire Mesh and Copper Wire Mesh pages.
Why EMI and RFI Shielding Is Crucial
Electromagnetic interference (EMI) and radiofrequency interference (RFI) are common challenges in today’s technology-driven world. These phenomena can disrupt the functioning of electronic devices, causing malfunctions or complete failure. Effective EMI shielding not only prevents such disruptions but also ensures compliance with safety and performance standards. Copper wire mesh serves as a robust barrier against EMI and RFI by reflecting or absorbing electromagnetic waves, ensuring the uninterrupted operation of critical systems.
Unique Properties of Copper Wire Mesh
- Superior Electrical Conductivity
Copper has excellent electrical conductivity, second only to silver. This property enables efficient grounding and shielding of electromagnetic waves, making it a preferred material for EMI and RFI shielding.
- Corrosion Resistance
Copper is highly resistant to corrosion, ensuring long-term performance even in harsh environments, including marine and industrial settings.
- Thermal Stability
Copper wire mesh can withstand high temperatures without degrading, making it suitable for applications involving heat.
- Malleability and Flexibility
Copper’s malleable nature allows it to be easily shaped and installed in various configurations, from Faraday cages to electronic enclosures.
- Durability
Copper wire mesh is robust and resistant to wear and tear, ensuring reliability in demanding applications.
Benefits of Using Copper Wire Mesh for EMI Shielding
- Effective Shielding: Copper wire mesh blocks electromagnetic waves, ensuring the seamless operation of electronic devices.
- Reduces Radiation: Limits harmful electromagnetic radiation from affecting human health and sensitive equipment.
- Light Transmission: Offers high transparency and does not obstruct visibility in applications such as shielding windows.
- Customizable: Available in various sizes and specifications, copper wire mesh can be tailored to specific project needs.
- Non-Magnetic: Copper is non-magnetic, making it ideal for applications where magnetic interference must be avoided.
Applications of Copper Wire Mesh for EMI Shielding
- Faraday Cages
Copper wire mesh is widely used in the construction of Faraday cages to block external electromagnetic waves and ensure the secure operation of sensitive equipment.
- Electronic Enclosures
Copper mesh shields electronic devices, preventing internal signals from interfering with external equipment and vice versa.
- Medical Facilities
In MRI rooms, copper wire mesh prevents external radio frequency signals from affecting imaging quality, ensuring accurate diagnoses.
- Aerospace and Defense
Copper wire mesh protects avionics and other critical systems from EMI, ensuring safe and efficient operation.
- Public Infrastructure
Used in display boards, airport terminals, and public transport systems to shield against electromagnetic radiation.
For more information, visit our Our Products page.
Types and Specifications of Copper Wire Mesh
Common Mesh Sizes for EMI Shielding
| Mesh Count | Wire Diameter | Aperture Size | Open Area |
| 16 LPI | 0.355 mm | 1.23 mm | 60% |
| 30 LPI | 0.28 mm | 0.57 mm | 45% |
| 60 LPI | 0.16 mm | 0.263 mm | 39% |
| 100 LPI | 0.05 mm | 0.204 mm | 65% |
Roll Dimensions
- Width: 0.914 m, 1 m, 1.22 m, 1.5 m
- Length: 30 m, 50 m, 100 m
- Customization: Sizes can be tailored to meet specific requirements.
Material Options
- Pure Copper Wire Mesh: Ideal for high conductivity and shielding.
- Copper Alloys: Enhanced corrosion resistance and durability.
For detailed specifications, visit Contact Us.
Comparison with Other Shielding Materials
- Copper vs. Stainless Steel
- Electrical Conductivity: Copper outperforms stainless steel in conductivity.
- Corrosion Resistance: Stainless steel offers better resistance in marine environments.
- Cost: Stainless steel is generally more affordable.
- Copper vs. Aluminum
- Durability: Copper is more durable and less prone to oxidation.
- Weight: Aluminum is lighter, making it suitable for weight-sensitive applications.
Maintenance and Longevity of Copper Wire Mesh
To maximize the lifespan of copper wire mesh:
- Clean Regularly: Use non-corrosive cleaning agents to remove dirt and debris.
- Protect from Corrosive Environments: Apply protective coatings if used in highly corrosive settings.
- Inspect Periodically: Check for wear and tear to ensure optimal performance.
Enhance Your EMI Shielding with Copper Wire Mesh
Copper wire mesh is a reliable and efficient solution for EMI and RFI shielding, offering unparalleled electrical conductivity, corrosion resistance, and durability. Its versatility and adaptability make it suitable for a wide range of applications across industries. For the best copper wire mesh products, trust IG Wire Screen as your trusted manufacturer and supplier.
